Montagehinweise System E2.1

Fügen

E2.1 Beide Bolzen ausrichten

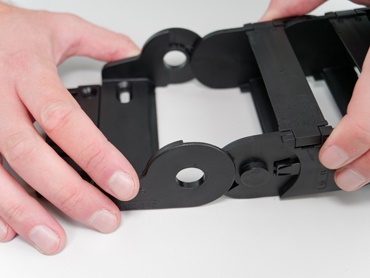

e2.1 Kette auseinander drücken

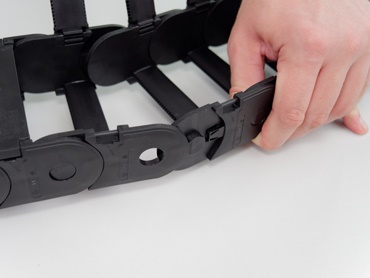

e2.1 Beide Bolzen einrasten

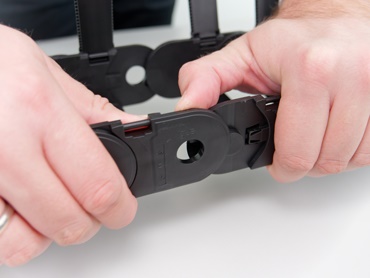

e2.1 Drücken und klicken

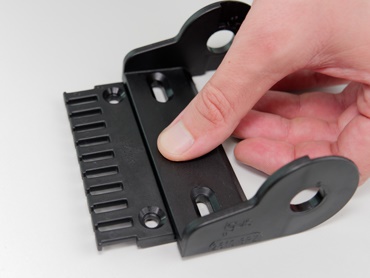

e2.1 Anschlusselement einrasten

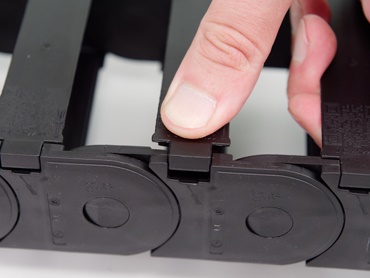

E2.1 Kamm einrasten

Trennen und Befüllen

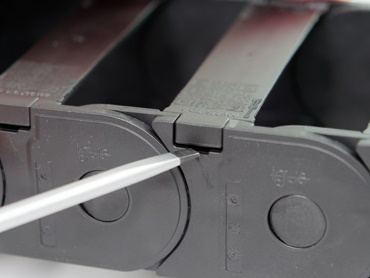

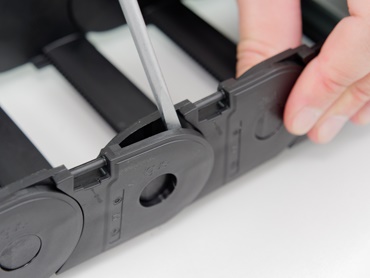

e2.1 Kette durch Drehen des Schraubenziehers öffnen

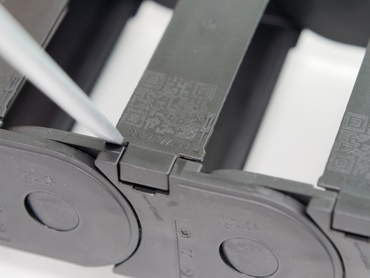

e2.1 Von oben aufhebeln

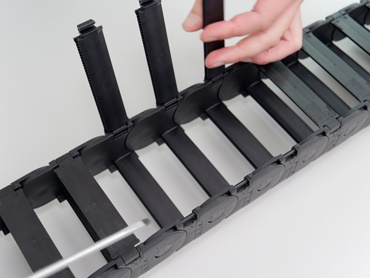

e2.1 Stege aufschwenken
e2.1 Seitenteil aufhebeln

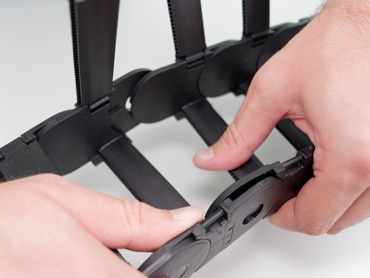

e2.1 Verdrehen und auseinanderziehen

System E2.1 - Montage - Video
